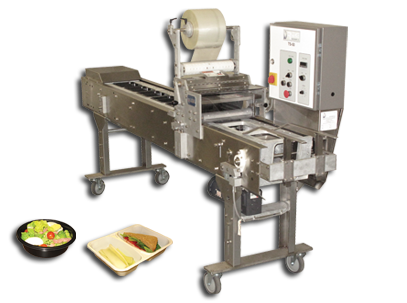

TS-50
RTG Machinery's TS-50 is the perfect machine for school systems or any other food manufacturer requiring speeds up to 50 cycles per minute(depending on tray type). This machine is intended for customers who focus on production with limited downtime. Please contact RTG for your tray/film needs. MACHINES IN STOCK!
Specifications
| Packaging Style | Tray Sealing |
|---|---|
| Film Types | Polyester (PET) "Lidding" Film |
| Electrical | 1/4 HP DC Drive Motor, 208V, 1 Phase, 60Hz |
| Weight | 500lbs |
| Construction | 304 Stainless Steel |
| Feeding Space | 50" |
| Output: | 10-50 PPM |
| Product Flow | Left to right, facing operating panel |
| Heat Seal Drum | Temperature controlled and Teflon Coated |
| Max Film Width | 10.5" |
| Max Tray Size | L: 14" W: 10" |
| Max Roll OD | 13"(Outer Diameter) |
|---|---|
| Change Over Time | 5-10 Minutes |
| Air Required | 60-80 psi (w/ air opening drum option) |

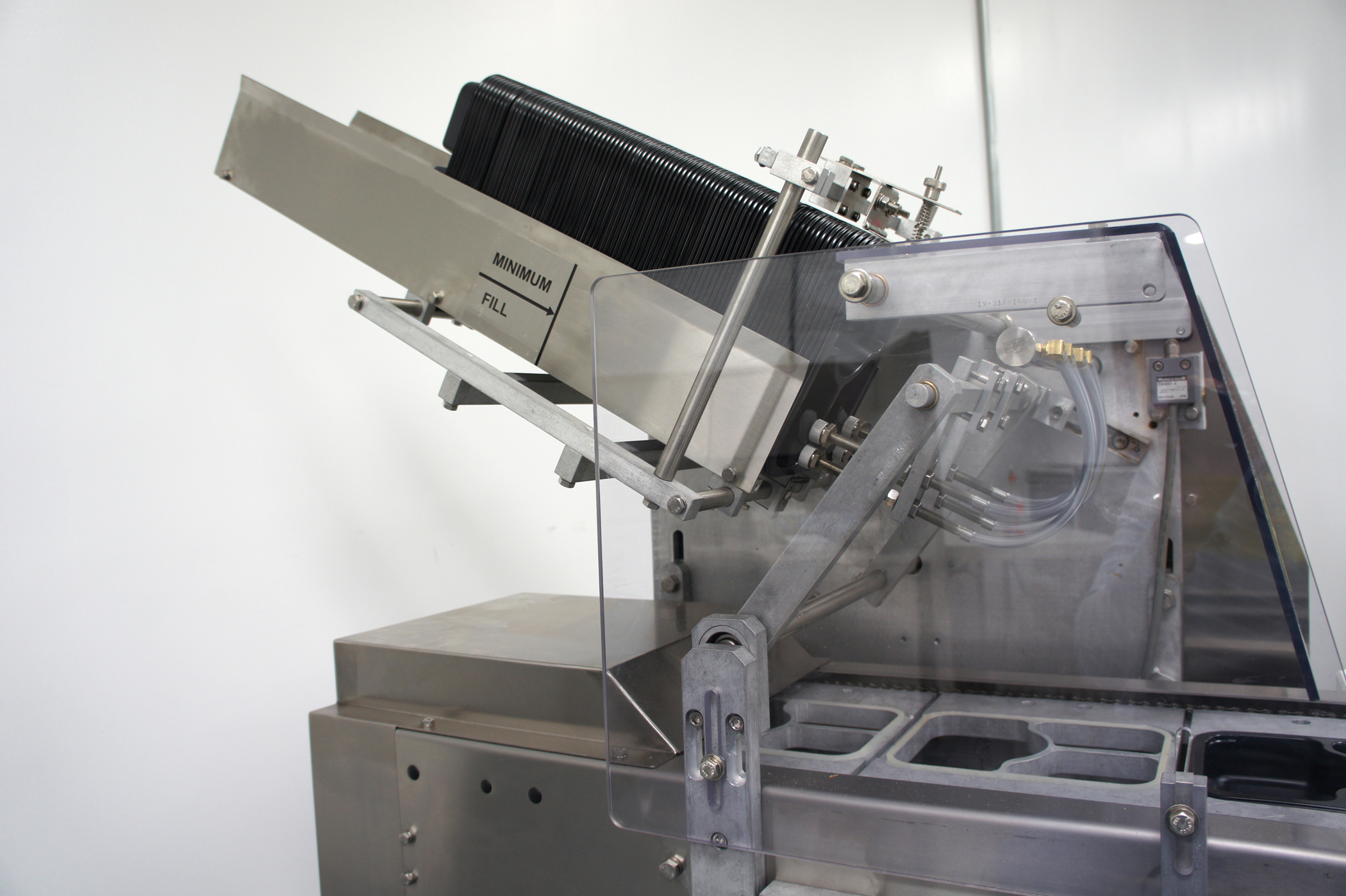

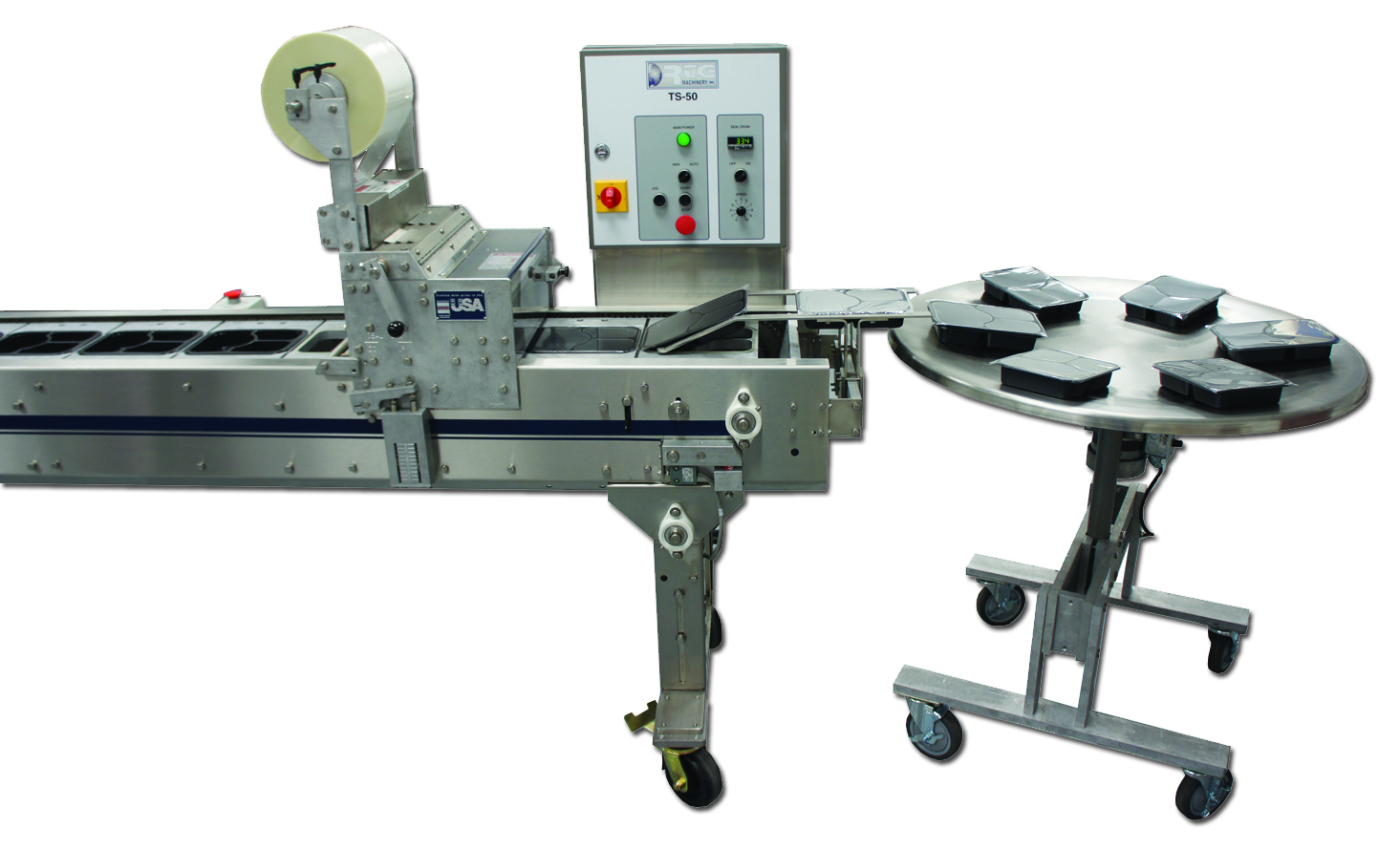

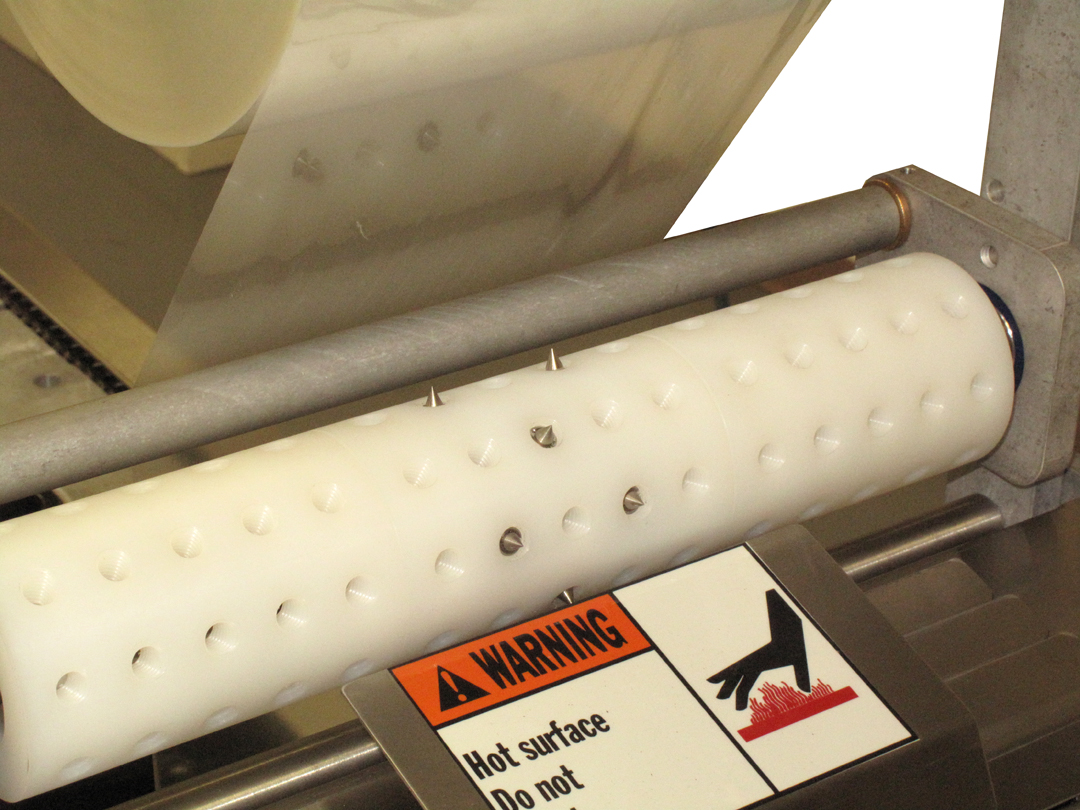

| Options & Accessories | Tray Denester, Extended Infeeds, Film Perforating Roll, Air Opening Seal Drum, Lazy Susan Turntable, Side Tables with Infeed Converyors. NOTE: This machine comes standard at 8' in length, however the TS-50 can be made in larger sizes as well: 10', 12', 16' and 24' |
|---|
